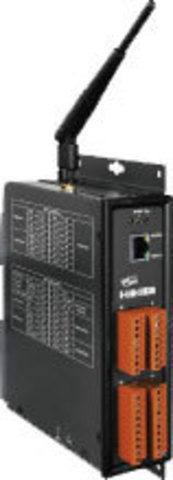

WISE-4000D

Артикул: 3665

Есть в наличии

Описание
Характеристики

3DI, 3DO, 8AI, GPRS Module and LCD Display

Аналоговый ввод
Количество каналов	8
Тип входа	0~20 mA
Разрядность	12-бит
Частота выборки	1 KHz max. (Read one channel)
Дискретный ввод
Количество каналов	3
Тип входа	Source(Dry Type), Common Ground
Уровень логической "1"	+3.5 VDC ~ +30 VDC
Уровень логического "0"	+1 VDC Max.
Напряжение изоляции	Non-isolated
Дискретный ввод, счетчики
Мах. значение	65535 (16 bits)
Max. входная частота	50 Hz
Mин. длительность импульса	10 ms
System
Процессор	16-bit CPU
SRAM	512 KB
Flash Memory	512 KB
EEPROM	16 KB
Сторожевой таймер	Да
NVRAM	31 Bytes
Часы реального времени	RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
Интерфейсы
PoE Ethernet Port	10/100 Base-TX Ethernet controller
COM 1	No (Unsupported by WISE firmware)
COM 2	No (Unsupported by WISE firmware)
SMS функции
Диапазон частот	Quad-band 850/900/1800/1900 MHz
Режим	Text and Unicode mode
LCD интерфейс
Effective display area	80.61 mm x 14.37 mm (W x H)
Module Dimension	93 mm x 70 mm x 1.6 mm (W x H x T)
Life Time	Expected life is more than 100,000 hours under normal operation
LED Indicators
System LED	Yes (Red)
Power Requirements
Reserve Polarity Protection	Да
Consumption	Idle: 75 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC
Frame Ground	ESD, Surge, EFT, Hi-Pot
Requirement	15W; Unregulated +10 VDC ~ +30 VDC
Mechanical
Dimensions (W x H x D)	72 mm x 123 mm x 35 mm
Installation	DIN-Rail or Wall mounting
Environment
Operating Temperature	-15 °C ~ +55 °C
Storage Temperature	-20 °C ~ +70 °C
Humidity	5 ~ 90% RH, non-condensing
Functions
Rule Configuration Website	Access Web server on WISE controllers to edit and upload logic rules through web browser.
36 IF-THEN-ELSE Logic Rules	3 IF conditions with AND or OR operators 3 THEN actions and 3 ELSE actions
48 Internal Registers	Hold temporary variables and read/write data via Modbus/TCP address.
12 Timers	Delay / Timing functions
12 Schedules	Setup prescheduled routine tasks.
12 SMS	Send SMS to pre-set mobile phone numbers.
12 Emails	Send Email messages to pre-set Email receivers.
12 CGI Commands	Send pre-set CGI commands.
12 Recipes	Set up THEN/ELSE action groups.
8 P2P remote modules	Set up the connection information for the remote WISE modules.
Modbus/TCP Protocol	Real time control and monitoring I/O channels and system status of controllers via SCADA software.
IF Conditions
DI Channel	ON, OFF, ON to OFF, OFF to ON, Change
AI Channel	=, <, >, >=, <= (value)
Internal Register	=, <, >, >=, <= (value)
DI Counter	=, >, <, >=, <=(value), Change
DO Counter	=, >, <, >=, <=(value), Change
Timer	Timeout, Not Timeout
Schedule	In Range, Out of Range
P2P	DI, AI, DI counter, DO counter, IR
Rule Status	Enable, Disable
THEN / ELSE Actions
DO Channel	ON, OFF, Pulse Output
Internal Register	Change the value
DI Counter	Reset
DO Counter	Reset
Timer	Start, Stop
Schedule	Start, Stop
SMS	Send
Email	Send
CGI Commands	Send
Recipe	Execute
P2P	DO(On/Off), AO, IR
Rule Status	Enable, Disable
